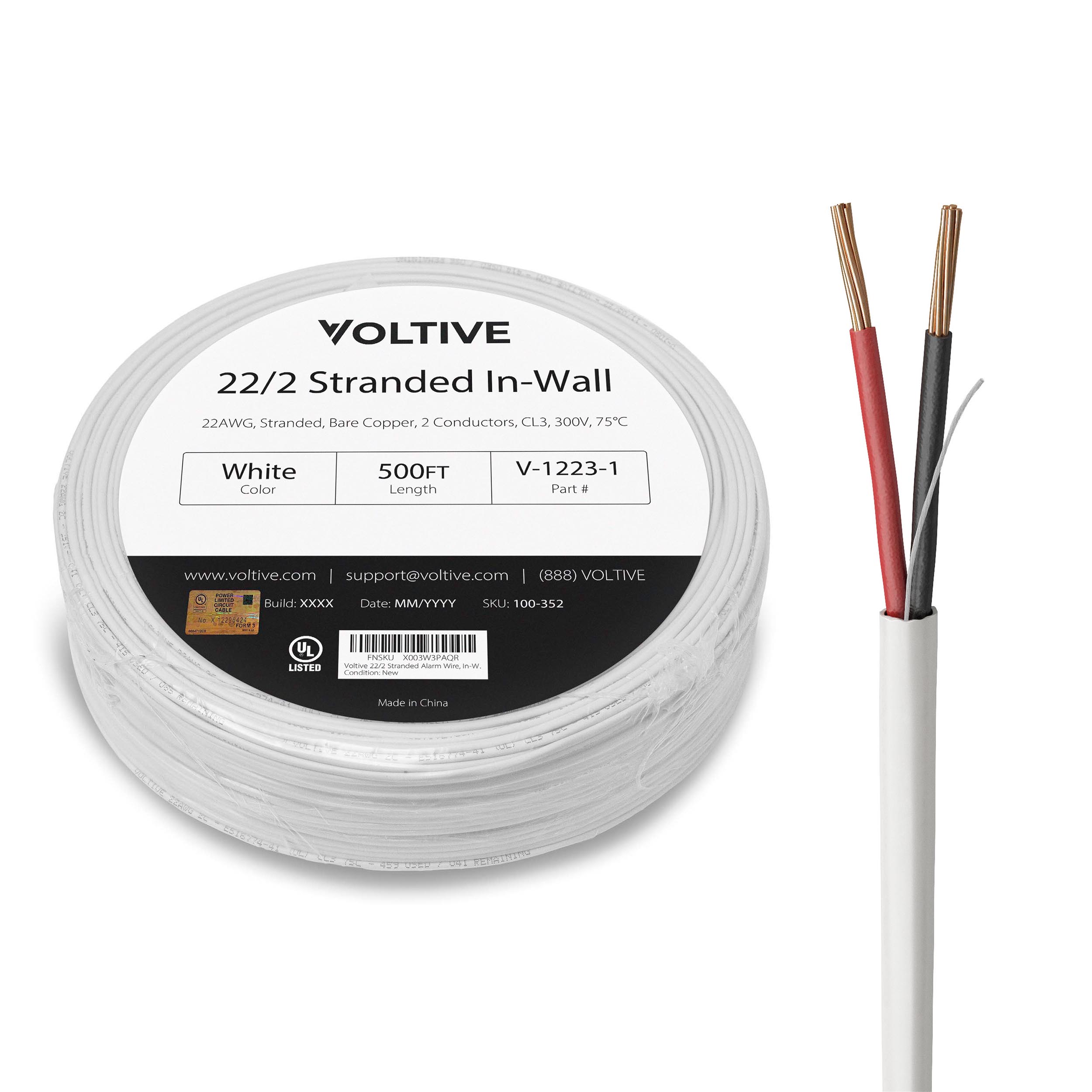

22/2 Stranded In-Wall Alarm Wire
Model #:
V-1223
22 gauge, 2 conductor wire with stranded bare copper conductors and ripcord. General Purpose (CL3) fire safety rating for installation in walls and risers (between floors) in residential buildings and in walls in commercial buildings. UL Listed. Use for LED lighting, security alarms, or any suitable low voltage application.
Part #:
V-1223-1
Color:
White
Length:
500ft
Packaging:
Coilpack
Loading lead times...
Cable That's Built Right
- Oxygen-Free Copper Conductors have superior performance and durability compared to Copper Clad Aluminum (CCA).
- General Purpose (CL3) fire safety rating for installation in walls and risers (between floors) in residential buildings and in walls in commercial buildings.
- Meets strict UL 13 materials and performance standard.
- Integrated Ripcord makes it a cinch to remove longer lengths of the jacket.
- Jacket Markings clearly show the part number, foot markings, and all regulatory information.
Want to learn more? Click here.
General
- Download Spec SheetDownload
- RatingsCL3
- Operating Temperature75°C
- Max. Operating Voltage300v
- Available ColorsWhite
- Available Lengths500ft
Jacket
- MaterialPolyvinyl Chloride (PVC)
- Overall Diameter3.3mm
- Thickness0.45mm
- Ripcord✓
- Paper Sleeve
Conductors
- Gauge22 AWG
- Strand Count7
- MaterialOxygen Free Copper
- Count2
- ColorsRed, Black
- InsulationPolyvinyl Chloride (PVC)
