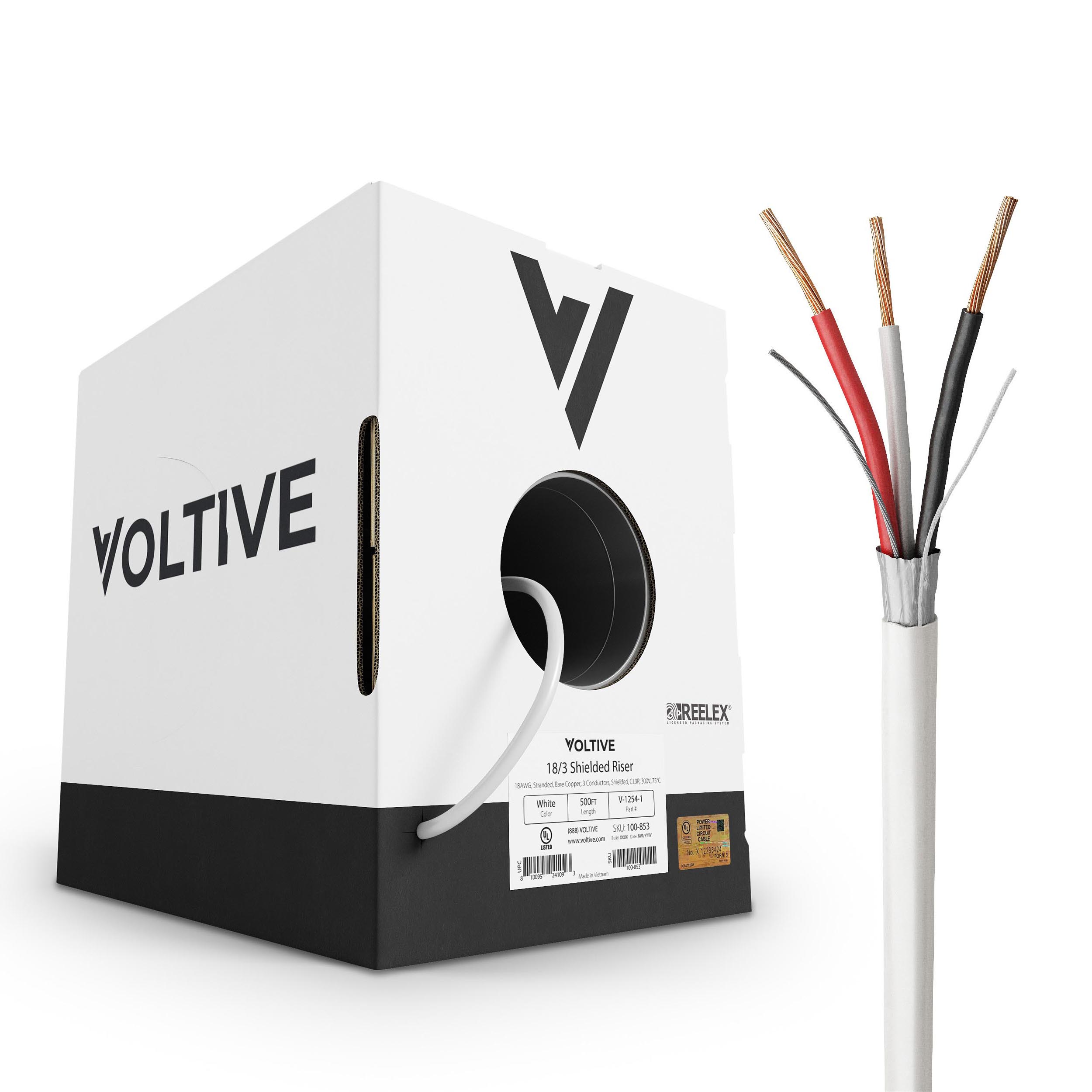

18/3 Shielded Riser Low Voltage Wire
Model #:
V-1254
18 gauge 3 conductor shielded low voltage wire for audio, control, alarm, or other low voltage applications, featuring 16 strand bare copper conductors. Riser (CL3R) fire safety rated. UL Listed.
Part #:
V-1254-1
Color:
White
Length:
500ft
Loading lead times...
Cable That's Built Right
- Oxygen-Free Copper Conductors have superior performance and durability compared to Copper Clad Aluminum (CCA).
- Riser (CL3R) fire safety rating for installation in walls and risers (between floors) in both residential and commercial buildings.
- Meets strict UL 13 materials and performance standard.
- Integrated Ripcord makes it a cinch to remove longer lengths of the jacket.

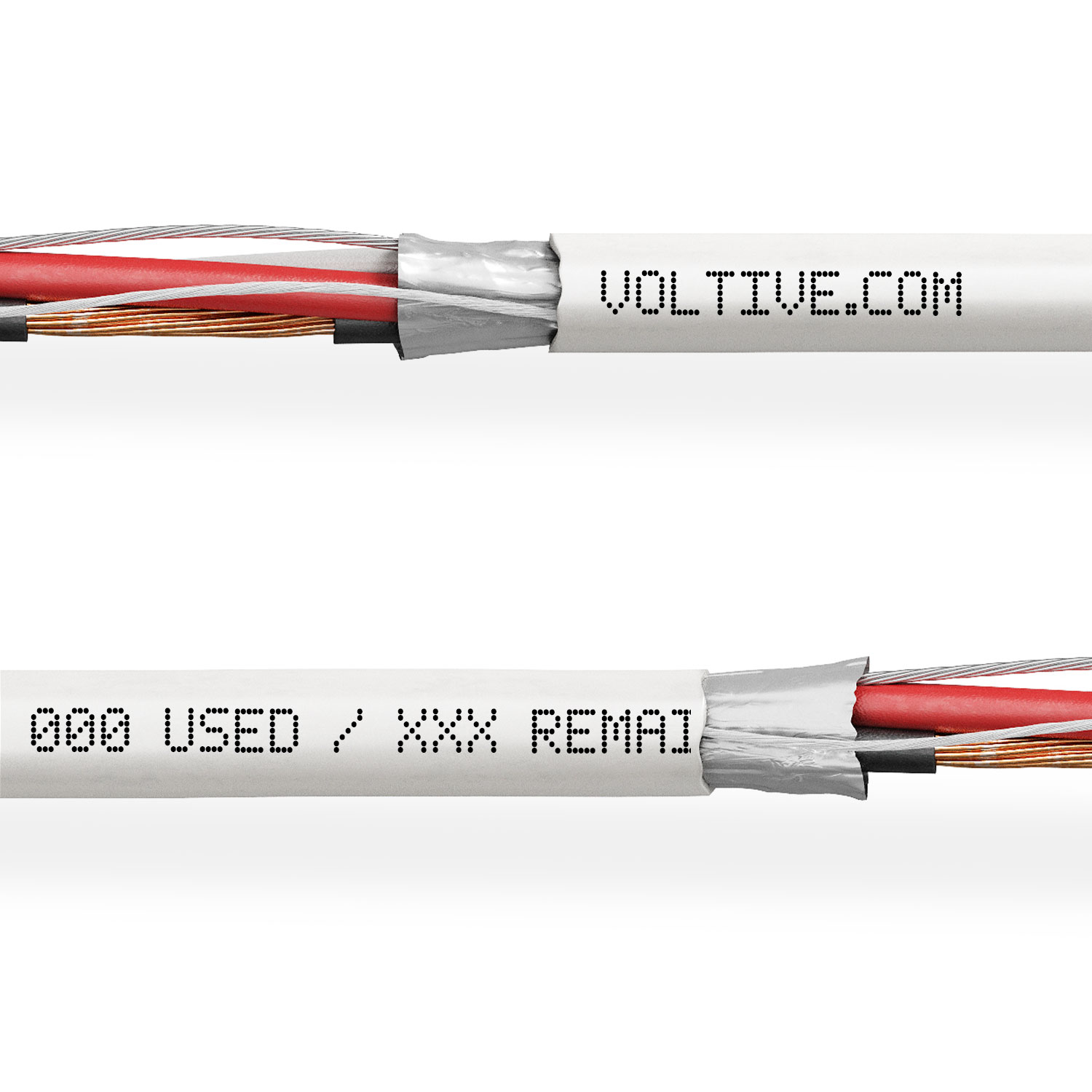

- Jacket Markings clearly show the part number, foot markings, and all regulatory information.
Want to learn more? Click here.
Professional Grade Pull Box
- Patented Reelex Wind lets cable pay out straight, without coils or tangles.
- Huge 4" Payout Hole avoids kinks on the way out, ensuring a smooth pull.
- Heavy Duty Cardboard withstands tons of abuse in the back of a van or on a jobsite.
- Water Resistant Coating means water beads off instead ruining the box.
- Reinforced Handles remain intact as the box is relocated between workshop, van, and jobsite.
Want to learn more? Click here.
General
- Download Spec SheetDownload
- RatingsCL3R
- Operating Temperature75°C
- Max. Operating Voltage300v
- Available ColorsWhite
- Available Lengths500ft
Jacket
- MaterialPolyvinyl Chloride (PVC)
- Overall Diameter4.9mm
- Thickness0.4mm
- Ripcord✓
- Paper Sleeve
Conductors
- Gauge18 AWG
- Strand Count16
- MaterialOxygen Free Copper
- Count3
- ColorsRed, Black, White
- InsulationPolyvinyl Chloride (PVC)
