22/3 Riser Low Voltage Wire
Model #:
V-1292
22 gauge, 3 conductor wire with stranded bare copper conductors and ripcord. Riser (CL3R) fire safety rating for installation in walls and risers (between floors) in both residential and commercial buildings. UL Listed. Use for LED lighting, security alarms, or any suitable low voltage application.
Part #:
V-1292-1
Color:
White
Length:
1000ft
Packaging:
Box
Loading lead times...
Cable That's Built Right
- Oxygen-Free Copper Conductors have superior performance and durability compared to Copper Clad Aluminum (CCA).
- Riser (CL3R) fire safety rating for installation in walls and risers (between floors) in both residential and commercial buildings.
- Meets strict UL 13 materials and performance standard.
- Integrated Ripcord makes it a cinch to remove longer lengths of the jacket.

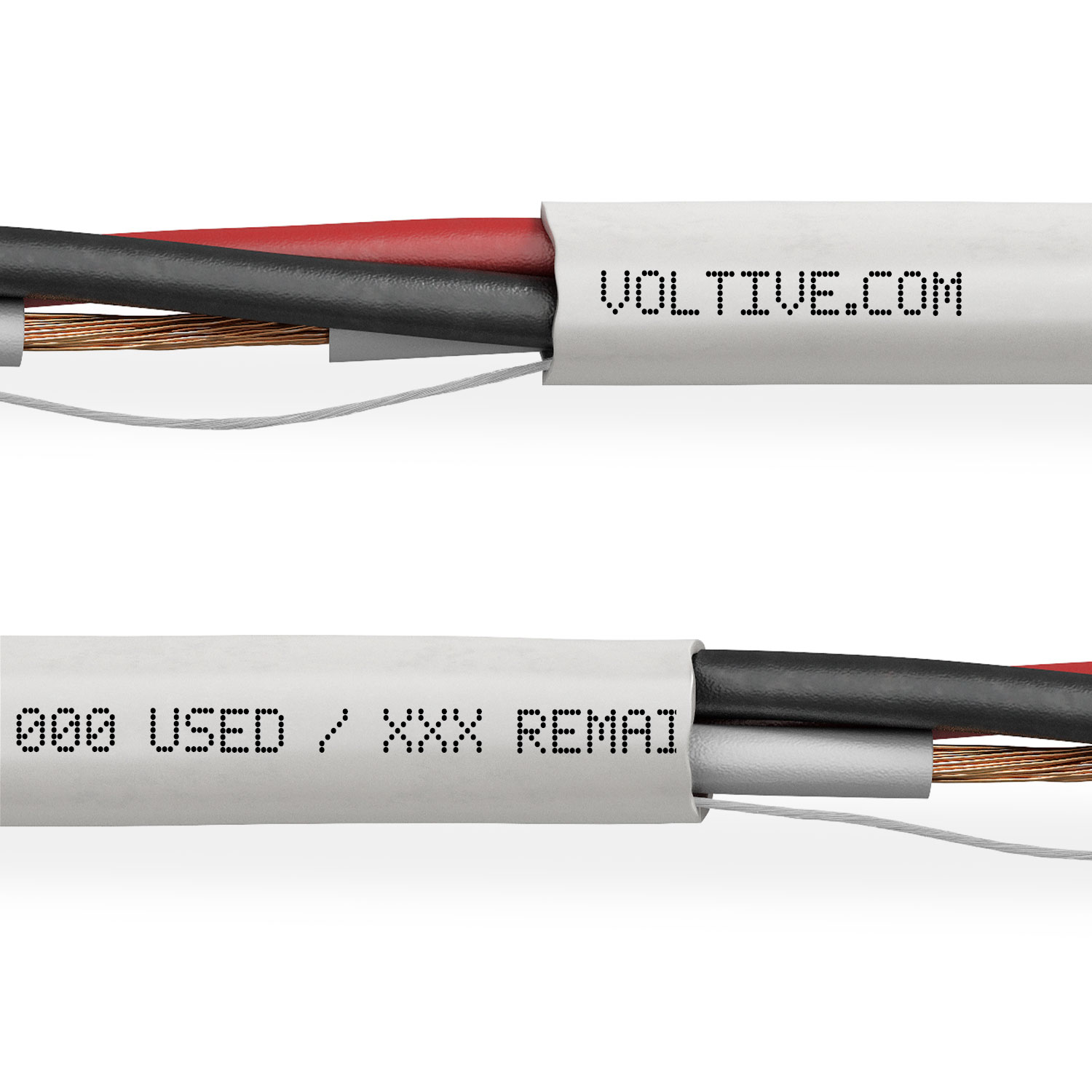

- Jacket Markings clearly show the part number, foot markings, and all regulatory information.
Want to learn more? Click here.
Professional Grade Pull Box
- Patented Reelex Wind lets cable pay out straight, without coils or tangles.
- Huge 4" Payout Hole avoids kinks on the way out, ensuring a smooth pull.
- Heavy Duty Cardboard withstands tons of abuse in the back of a van or on a jobsite.
- Water Resistant Coating means water beads off instead ruining the box.
- Reinforced Handles remain intact as the box is relocated between workshop, van, and jobsite.
Want to learn more? Click here.
General
- Download Spec SheetDownload
- RatingsCL3R
- Operating Temperature75°C
- Max. Operating Voltage300v
- Available ColorsBlack and White
- Available Lengths1000ft
Jacket
- MaterialPolyvinyl Chloride (PVC)
- Overall Diameter3.3mm
- Thickness0.4mm
- Ripcord✓
- Paper Sleeve
Conductors
- Gauge22 AWG
- Strand Count7
- MaterialOxygen Free Copper
- Count3
- ColorsRed, Black, White
- InsulationPolyvinyl Chloride (PVC)
