18/6 Plenum Low Voltage Wire
Model #:
V-1297

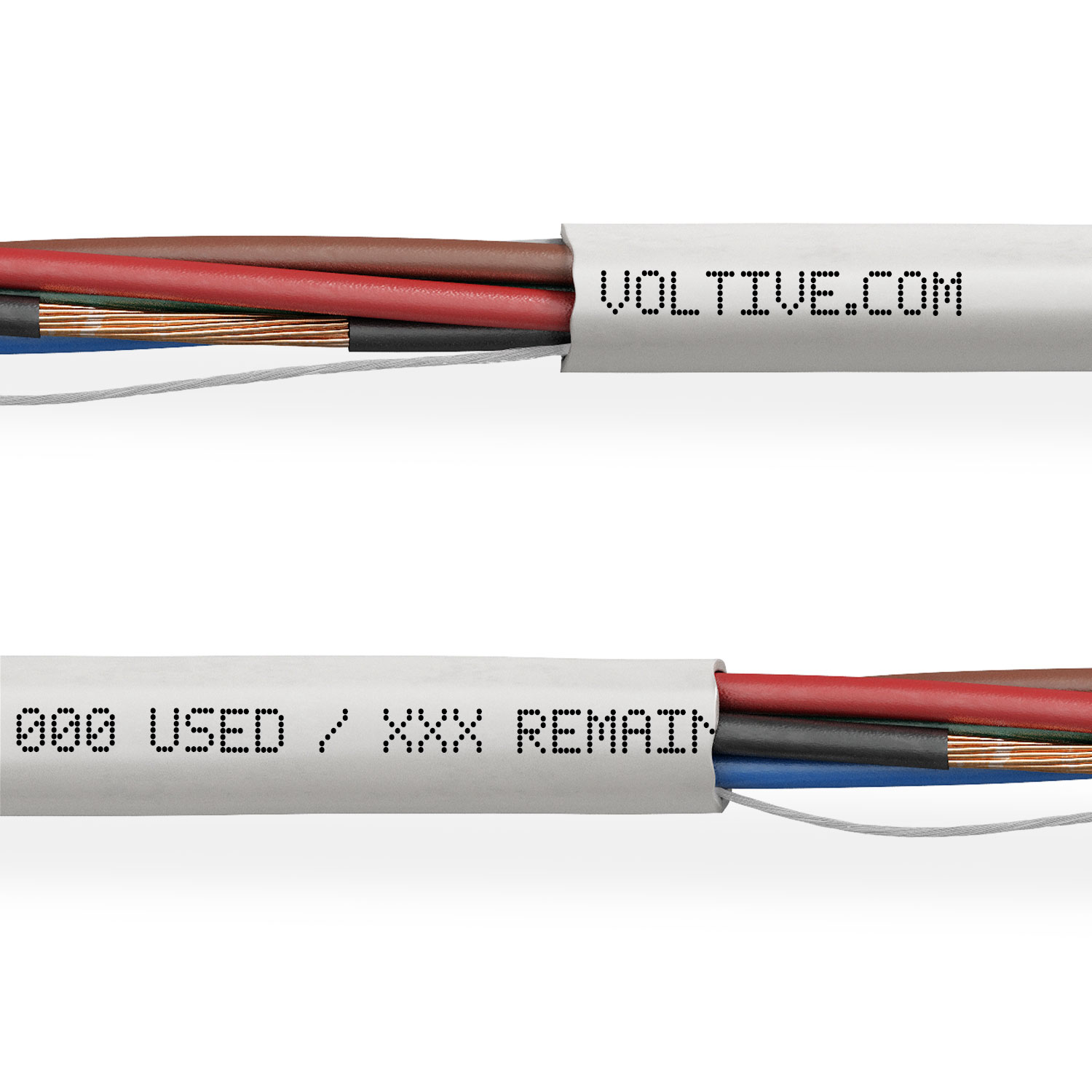

18 gauge, 6 conductor wire with stranded bare copper conductors and ripcord. Plenum (CL3P) fire safety rating for installation in walls, risers (between floors), and plenums in both residential and commercial applications. UL Listed. Use for LED lighting, security alarms, or any suitable low voltage application.
Part #:
V-1297-1
Color:
White
Length:
500ft
Packaging:
Box
Loading lead times...
Cable That's Built Right
- Oxygen-Free Copper Conductors have superior performance and durability compared to Copper Clad Aluminum (CCA).
- Plenum (CL3P) fire safety rating for installation in walls, risers (between floors), and plenums in both residential and commercial applications.
- Meets strict UL 13 materials and performance standard.
- Integrated Ripcord makes it a cinch to remove longer lengths of the jacket.
- Jacket Markings clearly show the part number, foot markings, and all regulatory information.
Want to learn more? Click here.
Professional Grade Pull Box
- Patented Reelex Wind lets cable pay out straight, without coils or tangles.
- Huge 4" Payout Hole avoids kinks on the way out, ensuring a smooth pull.
- Heavy Duty Cardboard withstands tons of abuse in the back of a van or on a jobsite.
- Water Resistant Coating means water beads off instead ruining the box.
- Reinforced Handles remain intact as the box is relocated between workshop, van, and jobsite.
Want to learn more? Click here.
General
- Download Spec SheetDownload
- RatingsCL3P
- Operating Temperature75°C
- Max. Operating Voltage300v
- Available ColorsWhite
- Available Lengths500ft
Jacket
- MaterialLow-smoke Flame Retardant Polyvinyl Chloride (LSFRPVC)
- Overall Diameter5.86mm
- Thickness0.38mm
- Ripcord✓
- Paper Sleeve
Conductors
- Gauge18 AWG
- Strand Count16
- MaterialOxygen Free Copper
- Count6
- ColorsRed, Black, White, Green, Brown, Blue
- InsulationLow-smoke Flame Retardant Polyvinyl Chloride (LSFRPVC)
